La serie T400 está lista para mantenerse al día con los requisitos de tecnología hoy y mañana.

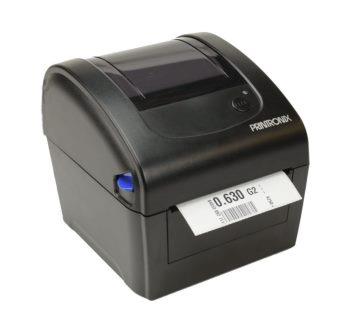

La serie de impresoras T400 es ideal para aplicaciones que requieren una impresora de códigos de barras compacta, asequible y confiable. Con ocho veces más memoria que su competidor más cercano, además de una amplia gama de opciones de comunicación estándar y opcionales.
Specifications
PRODUCT BENEFITS
- 32-bit RISC high performance processor
- Double wall clamshell construction
- Direct printing
- Available in 203 DPI and 300 DPI
- 64 MB SDRAM / 128 MB Flash Memory
- 4” model configuration
PRINTING CHARACTERISTICS
- Max Print Speed: 6 IPS @ 203 DPI / 4 IPS @ 300 DPI
- Print Method: Direct
- Resolution: 203 DPI or 300 DPI
- Max. Print Width: 4.1” (104mm)/6.6” (168mm)/8.5” (216mm)
- Printer Memory: 512MB RAM / 128MB Flash
MEDIA SPECIFICATIONS
- Media Applications: Product marking, point of sale, retail, small office, shipping labels, and other labeling and tag application
- Min. Media Width: (4”) 0.7 (19mm)
- Max. Media Width: 4.5” (114.3mm)
- Min. Media Length: 0.25” / 1.0” (Continuous/Tear-Off)
- Max. Media Length: 90” (2,286 mm)
- Media Thickness: 2.16 mil(.055mm) to 7.48 mil(.19mm)
- Media Roll Core Diameter: 1.0” (25.4mm)
- Max. Media Roll Diameter: 5.0” (127mm)
- Media Sensing: Transmissive gap sensor, black mark reflective sensor, head open sensor
- Media Type: Continuous, black mark, fan-fold, notched (outside wound)
MEDIA HANDLING MODES
- Standard: Continuous, Tear-Off Strip
- Options: Peel-Off, Cut
PHYSICAL CHARACTERISTICS
- Width: 7” (177.8mm)
- Height: 6.5”(165mm)
- Depth: 7.6” (193mm)
- Printer Weight: 4.32lbs (1.96kg)
- Shipping Weight: 5.8 lbs (2.63kg)
PRINTER LANGUAGE
-
Printer Languages: EPL, ZPL, ZPL2
COMMUNICATION AND CONNECTIVITY/INTERFACE
- Standard Interface I/O: Serial RS232, USB 2.0 , and Ethernet 10/100Base T
- Optional Interface I/O: WiFi, 802.11a/b/g/n (US only)
- WiFi Security Protocol: WEP 40/128bit, WPA Personal (PSK), WPA2 Personal (PSK) and Enterprise (AES CCMP) EAP-TLS, EAP-TTLs, PEAPv0/MS-CHAPv2, PEAPv1 EAP-MD5
OPERATING ENVIRONMENT
- Operating Temperature: 40 to 104 °F (5 to 40 °C)
- Operating Humidity: 20 – 85% Non-Condensing
- Storage Temperature: -40 to 140 °F (-40 to 60 °C)
- Storage Humidity: 10 – 90% Non-Condensing
POWER REQUIREMENT
- Line Input: Auto Range AC 100-240V, 50-60Hz
- Printer Output: DC 24V, 2.5A, 60W
REGULATORY COMPLIANCES
- Emissions: FCC, CE, CCC
- Safety: cTUVus, CE
- Environmental: RoHS, WEEE, ENERGY STAR®
- Radios (WiFi): FCC others based on market need
BARCODE SYMBOLOGIES
- 1D Barcodes: Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11, China Post
- 2D Barcodes: RSS-Stacked, GS1 DataBar, Code 11, China Post PDF-417, Maxicode, DataMatrix, QR code, Aztec, MicroPDF-417
FONT, GRAPHIC SUPPORT
- Internal Fonts: 8 alpha-numeric bitmap font Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font
- Font and barcode rotation: 0, 90, 180, 270 degree
OPTIONS AND ACCESSORIES
- WiFi 802.11 a/b/g/n (US only) includes Real Time Clock
- Peel & Present
- Cutter
